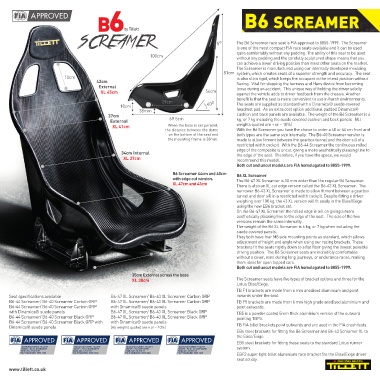

Page 3 - catalogo Tillett

B6 SCREAMER

5 5 o o The B6 Screamer race seat is FIA approved to 8855-1999. The Screamer
is one of the most compact FIA race seats available and it can be used
quite comfortably without any padding. The ability of this seat to be used
100cm
100cm without any padding and the carefully sculptured shape means that you
can achieve a lower driving position than most other seats on the market.
The Screamer is manufactured using our internally developed moulding
8 81cm system, which creates seats of a superior strength and accuracy. The seat
10cm is also ultra rigid, which keeps the occupant in the intend position without
42cm flexing. Vital for stopping the harness and Hans device from becoming
External loose during an accident. This unique way of holding the driver solidly
54cm
XL 45cm 54cm against the vehicle adds to driver feedback from the chassis. Another
benefit is that the seat is more convenient to use in harsh environments.
29cm 60 o o The seats are supplied as standard with a Dinamica® suede covered
60
10cm0cm
38mm
38mm headrest pad. As an extra cost option additional padded Dinamica®
37cm 69.5cm cushion and back panels are available. The weight of the B6 Screamer is 6
External kg, or 7 kg including the suede covered cushion and back panels. (All
XL 41cm When the base is set parallel, weights quoted are + or – 10%)
the distance between the dome With the B6 Screamer you have the choice to order a 40 or 44 cm front and
on the bottom of the seat and both types are the same size internally. The B6-40 Screamer version is
the mounting frame is 38mm. made to allow fitment between the gearbox tunnel and the door sill of a
restricted width cockpit. With the B6-44 Screamer the continuous rolled
edge of the composite is uncut, giving a more aesthetically pleasing line to
34cm Internal the edge of the seat. Therefore, if you have the space, we would
XL 37cm recommend this model.
Both cut and uncut models are FIA homologated to 8855-1999.
B6 Screamer 44cm and 40cm B6 XL Screamer
with edge cut version. The B6-47 XL Screamer is 30 mm wider than the regular B6 Screamer.
XL 47cm and 43cm There is also an XL cut edge version called the B6-43 XL Screamer. The
narrower B6-43 XL Screamer is made to allow fitment between a gearbox
tunnel and door sill in a restricted width cockpit. Despite fitting a driver
weighing over 100 kg, the 43 XL version will fit easily in the Elise/Exige
using the new EB4 bracket set.
On the B6-47 XL Screamer the rolled edge is left on giving a more
aesthetically pleasing line to the edge of the seat. The size of the two
versions remain the same internally.
The weight of the B6 XL Screamer is 6 kg, or 7 kg when including the
suede covered panels.
They both have four M8 side mounting points as standard, which allows
adjustment of height and angle when using our racing brackets. These
brackets fit the seats rigidly down to a flat floor giving the lowest possible
driving position. The B6 Screamer seats are incredibly comfortable
without a cover, even during long journeys, or endurance races, making
them ideal for open topped cars.
Both cut and uncut models are FIA homologated to 8855-1999.
35cm External across the base
XL 38cm The Screamer seats have five types of bracket options and three for the
Lotus Elise/Exige;
TB F1 brackets are made from 6 mm anodised aluminium and point
Seat specifications available B6-47 XL Screamer/ B6-43 XL Screamer Carbon GRP inwards under the seat.
B6-44 Screamer/ B6-40 Screamer Carbon GRP B6-47 XL Screamer/ B6-43 XL Screamer Carbon GRP TB F5 brackets are made from 6 mm high grade anodised aluminium and
B6-44 Screamer/ B6-40 Screamer Carbon GRP with Dinamica® suede panels point outwards.
with Dinamica® suede panels B6-47 XL Screamer/ B6-43 XL Screamer Black GRP TB5 is a powder coated 5mm thick aluminium version of the outward
B6-44 Screamer/ B6-40 Screamer Black GRP B6-47 XL Screamer/ B6-43 XL Screamer Black GRP pointing TBF5.
B6-44 Screamer/ B6-40 Screamer Black GRP with with Dinamica® suede panels TB FIA billet brackets point outwards and are used in the FIA crash tests.
Dinamica® suede panels (All weights quoted are + or – 10%)
EB4 steel brackets for fitting the B6 Screamer and B6-43 Screamer XL to
the Elise/Exige.
EB5 steel brackets for fitting these seats to the standard Lotus runner
TILLETT TILLETT TILLETT TILLETT system.
B6 XL SCREAMER B6 40 SCREAMER B6 SCREAMER B6 XL 43 SCREAMER
CS.374.17 CS.377.17 CS.376.17 CS.375.17
8855-1999 8855-1999 8855-1999 8855-1999 EBF2 super light billet aluminium race bracket fits the Elise/Exige driver
seat solidly.
www.tillett.co.uk
